ISO7380 Button Head Socket Cap Screw
ISO7380 Button Head Socket Cap Screw, material by steel, class 8.8, 12.9 , Zinc plated , size M3-M16 and length from 10mm to 100mm from China machine screws manufacturer.
 |
 |

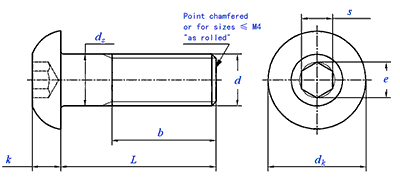

| Size | P | dk | ds | k | t | s | ||||
| Pitch | max | min | max | min | max | min | min | max | min | |
| M3 | 0.5 | 5.7 | 5.4 | 3 | 2.86 | 1.65 | 1.4 | 1.04 | 2.08 | 2.02 |
| M4 | 0.7 | 7.6 | 7.24 | 4 | 3.82 | 2.2 | 1.95 | 1.3 | 2.58 | 2.52 |
| M5 | 0.8 | 9.5 | 9.14 | 5 | 4.82 | 2.75 | 2.5 | 1.56 | 3.08 | 3.02 |
| M6 | 1.0 | 10.5 | 10.07 | 6 | 5.82 | 3.3 | 3.0 | 2.08 | 4.095 | 4.02 |
| M8 | 1.25 | 14 | 13.57 | 8 | 7.78 | 4.4 | 4.1 | 2.6 | 5.14 | 5.02 |
| M10 | 1.5 | 17.5 | 17.07 | 10 | 9.78 | 5.5 | 5.2 | 3.12 | 6.14 | 6.02 |
| M12 | 1.75 | 21 | 20.48 | 12 | 11.73 | 6.6 | 6.24 | 4.16 | 8.175 | 8.025 |
| M16 | 2.0 | 28 | 27.48 | 16 | 15.73 | 8.8 | 8.44 | 5.20 | 10.175 | 10.025 |
