DIN 983 Retaining Ring with lugs for shaft

Retaining Ring with lugs for shaft, External Retaining ring as per DIN 983 standard, material: Spring steel 65Mn , black oxide, size 16mm-140mm from China Retaining Ring manufacturer.

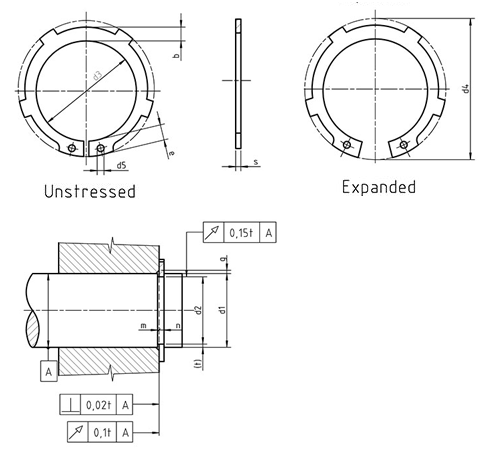

External Retaining Ring with lugs DIN 983
Shaft diameter Circlip Groove
Nominal size
d1		 s d3 a b d5 1000 units. in kg d2 m t n
　 Lim. Dex. 　 lim.dev. max. approx. min. approx. 　 lim.dev. H13 min.
16 1 0 14.7 +0.1 3.5 2.3 1.7 0.82 15.2 0 1.1 0.4 1.2
17 1 -0.06 15.7 -0.36 3.6 2.3 1.7 0.93 16.2 -0.11 1.1 0.4 1.2
18 1.2 　 16.5 　 3.7 2.4 2 1.24 17 　 1.3 0.5 1.5
19 1.2 　 17.5 　 3.7 2.5 2 1.35 18 　 1.3 0.5 1.5
20 1.2 　 18.5 +0.13 3.8 2.6 2 1.45 19 0 1.3 0.5 1.5
22 1.2 　 20.5 -0.42 4 2.8 2 1.77 21 -0.13 1.3 0.5 1.5
23 1.2 　 21.5 +0.21 4.1 2.9 2 1.84 22 0 1.3 0.5 1.5
24 1.2 　 22.2 -0.42 4.2 3 2 1.98 22.9 -0.21 1.3 0.55 1.7
25 1.2 　 23.2 　 4.3 3 2 2.12 23.9 　 1.3 0.55 1.7
26 1.2 　 24.2 　 4.4 3.1 2 2.18 24.9 　 1.3 0.55 1.7
28 1.5 　 25.9 　 4.5 3.2 2 3.15 26.6 　 1.6 0.7 2.1
30 1.5 　 27.9 　 4.7 3.5 2 3.65 28.6 　 1.6 0.7 2.1
32 1.5 　 29.6 　 5 3.6 2.5 4 30.3 0 1.6 0.85 2.6
35 1.5 　 32.2 0.25 5.2 3.9 2.5 4.38 33 -0.25 1.6 1 3
38 1.75 　 35.2 -0.5 5.5 4.2 2.5 6.5 36 　 1.85 1 3
40 1.75 　 36.5 +0.39 7.2 4.4 2.5 7 37.5 　 1.85 1.25 3.8
42 1.75 　 38.5 -0.9 7.2 4.5 2.5 7.5 39.5 　 1.85 1.25 3.8
45 1.75 　 41.5 　 7.2 4.7 2.5 8.5 42.5 　 1.85 1.25 3.8
47 1.75 　 43.5 　 7.2 4.9 2.5 8.7 44.5 　 1.85 1.25 3.8
48 1.75 　 44.5 　 7.2 5 2.5 8.9 45.5 　 1.85 1.25 3.8
50 2 0 45.8 　 8.2 5.1 2.5 11.5 47 　 2.15 1.5 4.5
55 2 -0.07 50.8 +0.46 8.2 5.4 2.5 13 52 0 2.15 1.5 4.5
57 2 　 52.8 -1.1 8.2 5.5 2.5 14 54 -0.3 2.15 1.5 4.5
58 2 　 53.8 　 8.2 5.6 2.5 14.3 55 　 2.15 1.5 4.5
60 2 　 55.8 　 8.2 5.8 2.5 14.8 57 　 2.15 1.5 4.5
62 2.5 　 57.8 　 8.2 6 2.5 15.9 59 　 2.15 1.5 4.5
65 2.5 　 60.8 　 10.2 6.3 3 21.7 62 　 2.65 1.5 4.5
67 2.5 　 62.5 　 10.2 6.4 3 22.6 64 　 2.65 1.5 4.5
68 2.5 　 63.5 　 10.2 6.5 3 23.5 65 　 2.65 1.5 4.5
70 2.5 　 65.5 　 10.2 6.6 3 25.1 67 　 2.65 1.5 4.5
75 2.5 　 70.5 　 10.2 7 3 28.2 72 　 2.65 1.5 4.5
80 2.5 　 74.5 　 10.2 7.4 3 30.8 76 　 2.65 1.75 5.3
85 3 0 79.5 　 10.2 7.8 3.5 39.5 81.5 0 3.15 1.75 5.3
90 3 -0.08 84.5 +0.54 10.2 8.2 3.5 47.7 86.5 -0.35 3.15 1.75 5.3
95 3 　 89.5 -1.3 10.2 8.6 3.5 53 91.5 　 3.15 1.75 5.3
100 3 　 94.5 　 10.2 9 3.5 56.6 96.5 　 3.15 1.75 5.3
110 4 0 103 　 12.2 9.6 3.5 84 106 0 4.15 2 6
120 4 -0.1 113 　 14.2 10.2 3.5 89.7 116 -0.54 4.15 2 6
130 4 　 123 +0.63 14.2 10.7 4 105 126 0 4.15 2 6
140 4 　 133 -1.5 14.2 11.2 4 115 136 -0.63 4.15 2 6
